customized high current toroidal power inductor

(1). All test data is based on 25℃ ambient.

(2). DC current(A)that will cause an approximate △T40℃

(3). DC current(A)that will cause L0 to drop approximately 30%Typ

(4). Operating temperature range: -55℃~+125℃

(5).The part temperature (ambient + temp rise)should not exceed 125℃ under worst case operating conditions. circuit design, component.PWB trace size and thickness,airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the den application

Send email to us

Product Detail

Product Tags

1. MODEL NO: MS0630-220M

2. Size: please see the details as below

CUSTOMER	MODEL NO.	MS0630-220M	REVISION		A/0
FILE NO.	PART NO.		DATE		2023-3-27

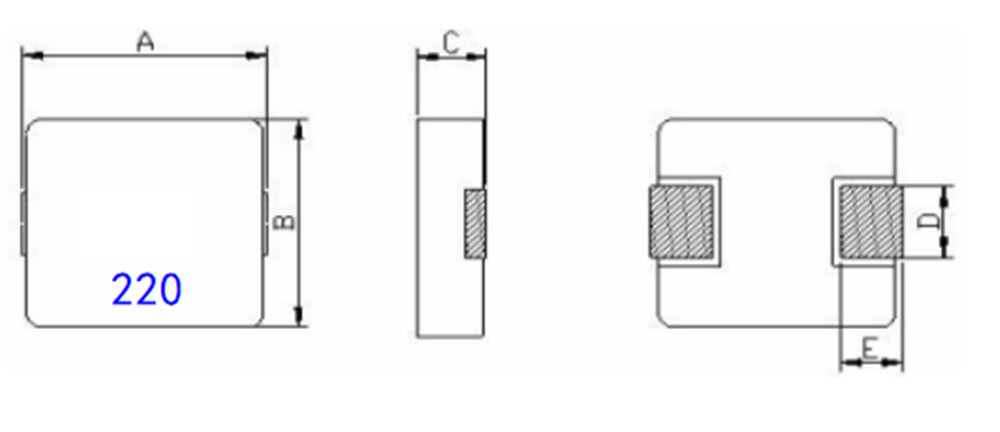

1.PRODUCT DIMENSION				UNIT:mm
				A	7.15±0.35
				B	6.6±0.2
				C	3.0 Max
				D	3.0±0.5
				E	1.5±0.5

2. ELECTRICAL REQUIREMENTS

PARAMETER	SPECIFICATION	CONDITION	TEST INSTRUMENTS
L(uH)	22.0μH±20%	100KHz/1.0V	MICROTEST 6377
DCR(mΩ)	189mΩMAX	At 25℃	TH2512A
I sat(A)	3.1A TYP L0A*70%	100KHz/1.0V	MICROTEST 6377+6220
I rms(A)	1.5A TYP △T≤40℃	100KHz/1.0V	MICROTEST 6377+6220

3. CHARACTERISTICS

(1). All test data is based on 25℃ ambient.

(2). DC current(A)that will cause an approximate △T40℃

(3). DC current(A)that will cause L0 to drop approximately 30%Typ

(4). Operating temperature range: -55℃~+125℃

SPECIAL REQUEST

(1) Lettering 220 on top of the body

(2) also can print your logo/ request accordingly

Application

(1)Low profile,high current power supplies.

(2)Battery powered devices.

(3)DC/DC converters in distributed power systems.

(4)DC/DC converters for field programmable gate array.

customized high current toroidal power inductor-01 (1)

Features

(1)ROHS compliant.

(2)Super low resistance,ultra high current rating.

(3)high performance(I sat)realized by metal dust core.

(4)Frequency Range:up to 1MHZ.

CUSTOMER			MODEL NO.		MS0630-220M		REVISION	A/0
FILE NO.			PART NO.				DATE	2023-3-27
SORT	ITEM	A	B	C	D	E
PRODUCT& DIMENSION	SPEC	7.15±0.35	6.6±0.2	3.0 Max	3.0±0.5	1.5±0.5
	1	7.19	6.65	2.86	2.92	1.54
	2	7.20	6.65	2.87	2.93	1.56
	3	7.19	6.64	2.89	2.92	1.55
	4	7.18	6.65	2.87	2.92	1.57
	5	7.21	6.64	2.86	2.92	1.55
	X	7.19	6.65	2.87	2.92	1.55
	R	0.03	0.01	0.03	0.01	0.03
ELECTRICAL& REQUIREMENTS	ITEM	L(μH)	DCR( mΩ)	I sat(A)	DC BIAS	Irms	SHAPE:
ELECTRICAL& REQUIREMENTS	SPEC	22.0μH±20%	189mΩ MAX	3.1A TYP L0A*70%		1.5A TYP ΔT≤40℃

Packaging Details

1. Tape and Reel Packing, 100pcs/reel,3000pcs/inner box , 9000pcs / outer box

3. Putting the air bubble bag products placed inside the box, sealed. (Bubble bag: 37*45cm), outside the box bottom will be sealed, inner box into the box.

4. Customized Packaging is available.

Trade Terms

1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.

Sales manager giving advice application form document, considering mortgage loan offer for car and house insurance

Shipment

We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)

Our Advantage

**20 years of experience in production and systematic management

**offer high-quality service ,design and solution

**troubleshoot design issue (EMI &EMC interference ,harmonic , size ...)

**Flexible production lines meet your lead time request

**company with ROHS /ISO /REACH / UL

**Sturdy packaging to secure products without damage

**we will find required material / provide solution / support design ,24 hours customer service

customized high current toroidal power inductor-01 (2)

FAQ

1. Are you a trading company or a factory?

We are a factory, established in 2011, one of the leading companies of inductors and transformers in China. An independent team of engineers, advanced production and testing equipment, escort your quality.

2. What is the delivery time?

There is stock for in-stock products. For customized samples, 5-10 days. For mass order, 15-30 days depends on quantity and stock of raw materials.

3. How to ensure the safe and reliable delivery of products?

Deliver the goods safely to your hands with high-quality export packing cartons and protective packaging methods. We have more than 10 years of packaging experience, whether it is air, sea or truck transportation. Also, if anything goes wrong, shipping insurance is a good option.

4. Can you provide relevant documents?

Business licenses, ISO, SGS, RoHS certificates or export documents, you can get everything you need to keep your money and goods safe.

5. What payment methods do you accept?

A bank account is preferred. Western Union, PayPal or other methods are also acceptable.

6. What is the product warranty policy?

Our corporate culture is that we are responsible for the quality of our products for life.

7. We have to pay some cost for the samples or can be returned for the mass production ?

If we have the stock one , no need for the sample cost . if need to open model or something cost really needed , then we have to charge for the samples , for the mass production , if the quantity is huge we can return the sample cost .
