Flat Wire Coil Magnetically Crossover Inductor MTP2918S-3R3M
1. MODEL NO: MTP2918S-3R3M
2. Size: please see the details as below
| CUSTOMER | MODEL NO. | MTP2918S-3R3M | REVISION | A/0 | ||
| FILE NO. | PART NO. | DATE | 2022.09.21 | |||

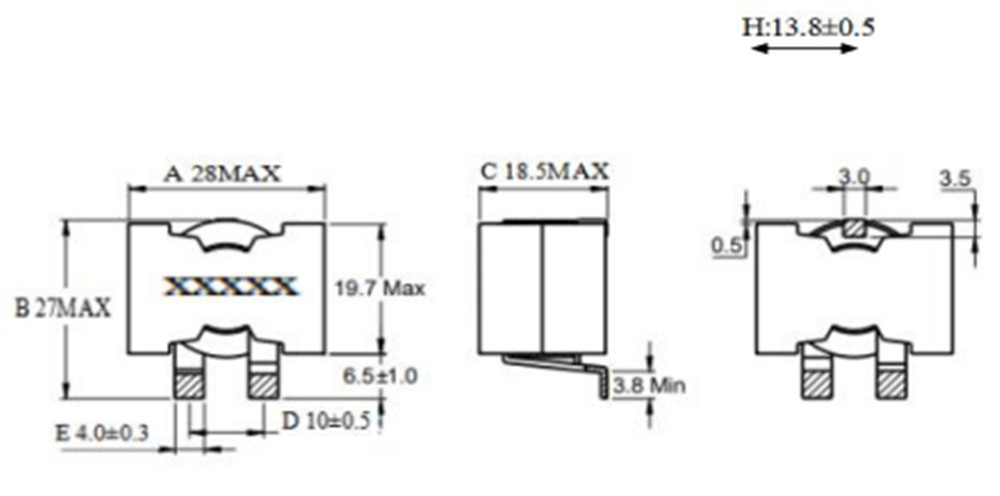

| 1.PRODUCT DIMENSION | UNIT:mm | |||||
| F:13.8±0.5 | A | 28MAX | ||||
 |
B | 27MAX | ||||
| C | 18.5±0.5 | |||||
| D | 10±0.5 | |||||
| E | 4.0±0.3 | |||||
| F | 13.8±0.5 | |||||
2. ELECTRICAL REQUIREMENTS
| PARAMETER | SPECIFICATION | CONDITION | TEST INSTRUMENTS |
| L(uH) | 3.3± 20% | 100KHz/0.3V | MICROTEST 6377 |
| DCR(mΩ) | 2.5MAX | At 25℃ | TH2512A |
| I sat(A) | 93A TYP L0A*70% | 100KHz/0.3V | MICROTEST 6377+6220 |
| I rms(A) | 30A TYP △T≤40℃ | 100KHz/0.3V | MICROTEST 6377+6220 |
3. MATERIAL LIST
| ITEM | MATERIAL | SUPPLIER |
| CORE | DR:27*19*7.5*B12 | SHANGPENG/DONGYANGGUANG/TIA NTONG |
| WIRE | (1.0*4.0*7.75TS) | TAIYI-JIATENG-SONGYE |
| SOLDER | TIN-Sn99.95 | QIANDAO/HONGXINGWEI |
CHARACTERISTICS
(1). All test data is based on 25℃ ambient.
(2). DC current(A)that will cause an approximate △T40℃
(3). DC current(A)that will cause L0 to drop approximately 30%Typ
(4). Operating temperature range: -40℃~+125℃
(5). The part temperature (ambient + temp rise)should not exceed 125℃ under worst case operating conditions. circuit design, component.PWB trace size and thickness,airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the den application
SPECIAL REQUEST
(1) Lettering 3R3 on top of the body.
(2) your special demand also can be printe
Application
1. Digital Products:Digital camera ETC
2.Household Appliance:washing machine,air condition,coffee makerETC
3. Security products:Camera,Voice recording equipment,infrared devicesETC
4.Power:Switching power supply, UPS ETC
5.Lighting industrial: LED drivers
6.Auto electronics: Navigator,Data recorder, Car charger ETC
7.Toys:electric toys, remote controller ETC
8.Motors
Features
5Years warranty
High current High power High efficiency
Low temperature rise
Stable performance
Packaging Details
1. EPE foam + export carton, or plastic tray+export carton 40pcs/tray, 280pcs/bundle, 1 bundle =280pcs /ctn
2. Customized Packaging is available.
 Quantity/Tray:40PCS |
 |
 Quantity/Bundle:280PCS |
|
| |
|
 |
|
| Quantity/Bundle:280PCS | Quantity/Carton:280PCS | ||
Trade Terms
1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.
Shipment
We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)
FAQ
There is stock for in-stock products. For customized samples, 5-10 days. For mass order, 15-30 days depends on quantity and stock of raw materials.
Price depends on product specification, quantity, market factors. A price list is available when contacting us.
Business licenses, ISO, SGS, RoHS certificates or export documents, you can get everything you need to keep your money and goods safe.
A bank account is preferred. Western Union, PayPal or other methods are also acceptable.
Yes, of course , all the design can be customized based on your special request, we have the specialist to arrange all the samples for your checking.
If there is really some very serious production problems or some other problem , we will always positive to find the reasons and study to find a good solution .for the deliveryed cargo , we may discuss for details and always let the client satisfied /get the satisfied answer.
