Magnetic Unshielded Electronic Component Wire Wound Smd Chip Ferrite Copper Core Inductor Coil
1. MODEL NO: MS1360-330M

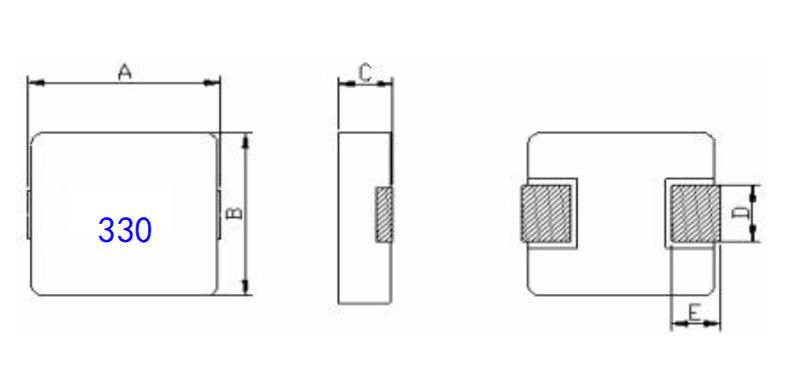

2. Size: please see the details as below
 |
A | 13.65±0.35 |
| B | 12.6±0.2 | |
| C | 6.0 Max | |
| D | 3.8±0.5 | |
| E | 2.5±0.5 |
Electrical Requirements
| PARAMETER | SPECIFICATION | CONDITION | TEST INSTRUMENTS |
| L(uH) | 33.0 μ H±20% | 100KHz/1.0V | MICROTEST 6377 |
| DCR(mQ) | 70.0mQMAX | At 25C | TH2512A |
| I sat(A) | 7.0A TYP L0A*70% | 100KHz/1.0V | MICROTEST 6377+6220 |
| I rms(A) | 4.0A TYP △T≤40C | 100KHz/1.0V | MICROTEST 6377+6220 |
Characteristics
(1). All test data is based on 25C ambient.
(2). DC current(A)that will cause an approximate △T40C
(3). DC current(A)that will cause L0 to drop approximately 30%Typ
(4). Operating temperature range: -55C~+125C
(5). The part temperature (ambient + temp rise)should not exceed 125 C under worst case operating conditions. circuit design, component. PWB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the den application
Application
(1) Low profile, high current power supplies.
(2) Battery powered devices.
(3) DC/DC converters in distributed power systems.
(5) DC/DC converters for field programmable gate array.
Packaging Details
1. Tape and Reel Packing, 500pcs/reel;
2. The inner box specification: 350*340*40mm, the outside box specification: 370*360*255mm;
3. Putting the air bubble bag products placed inside the box, sealed. (Bubble bag: 37*45cm), outside the box bottom will be sealed, inner box into the box.
4. Customized Packaging is available.
Trade Terms
1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.
Shipment
We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)
FAQ
A: We are a Manufacture specialized in making inductor, ferrite coil, common mode choke, etc.
A: Yes. It is our pleasure to provide free samples for you.
A: Usually it will take about 3-5 working days.
A: Depend on item, and normally 3-4 weeks due to we take more procerdures to ensure our quality.
A: All of our products are showing on our official website, you are always welcome to ask me to get more information directly.
