Power Inductor Flat Wire Coil Magnetically Crossover Inductor MTP2918S-330K

CHARACTERISTICS：

(1). All test data is based on 25℃ ambient.

(2). DC current(A)that will cause an approximate △T40℃

(3). DC current(A)that will cause L0 to drop approximately 30%Typ

(4). Operating temperature range: -40℃~+125℃

(5).The part temperature (ambient + temp rise)should not exceed 125℃ under worst case operating conditions. circuit design, component.PWB trace size and thickness,airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the den application.

Send email to us

Product Detail

Product Tags

1. MODEL NO: MTP2918S-330K

2. Size: please see the details as below

CUSTOMER	MODEL NO.	MTP2918S-330K	REVISION		A/0
FILE NO.	PART NO.		DATE		2022.08.10

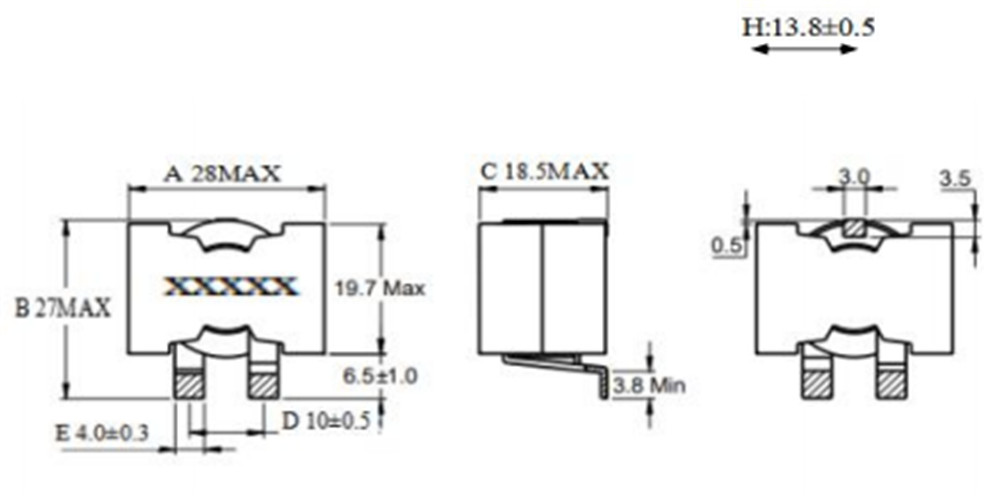

1.PRODUCT DIMENSION				UNIT:mm
F:13.8±0.5				A	28MAX
				B	27MAX
				C	18MAX
				D	10±0.5
				E	4.0±0.3
				F	13.8±0.5

2. ELECTRICAL REQUIREMENTS

PARAMETER	SPECIFICATION	CONDITION	TEST INSTRUMENTS
L(uH)	33± 10%	100KHz/0.3V	MICROTEST 6377
DCR(mΩ)	2.8MAX	At 25℃	TH2512A
I sat(A)	8A TYP L0A*70%	100KHz/0.3V	MICROTEST 6377+6220
I rms(A)	30A TYP △T≤40℃	100KHz/0.3V	MICROTEST 6377+6220

3. MATERIAL LIST

ITEM	MATERIAL	SUPPLIER
CORE	DR:27197.5*B12	SHANGPENG/DONGYANGGUANG/TIA NTONG
WIRE	(0.84.07.75TS) 220℃	TAIYI-JIATENG-SONGYE
SOLDER	TIN-Sn99.95	QIANDAO/HONGXINGWEI
GLUE	G-107	YAYICHENG

4. CHARACTERISTICS

(1). All test data is based on 25℃ ambient.

(2). DC current(A)that will cause an approximate △T40℃

(3). DC current(A)that will cause L0 to drop approximately 30%Typ

(4). Operating temperature range: -40℃~+125℃

CUSTOMER			MODEL NO.		MTP2918S-330K		REVISION	A/0
FILE NO.			PART NO.				DATE	2022.08.10
SORT	ITEM	A	B	C	D	E	F
PRODUCT& DIMENSION	SPEC	28MAX	27MAX	18MAX	10±0.5	4.0±0.3	13.8±0.5
	1	27.20	25.56	17.78	10.32	4.01	13.68
	2	27.30	25.46	17.81	10.26	4.00	13.69
	3	27.20	25.59	17.79	10.24	4.02	13.64
	4	27.25	25.57	17.78	10.16	4.01	13.63
	5	27.30	25.65	17.82	10.24	4.02	13.69
	X	27.25	25.57	17.80	10.24	4.01	13.67
	R	0.10	0.19	0.04	0.16	0.02	0.06
ELECTRICAL& REQUIREME NTS	ITEM	L(μH)	DCR( mΩ)	I sat(A)	DC BIAS	Irms	SHAPE:
ELECTRICAL& REQUIREME NTS	SPEC	33± 10%	2.8MAX	8A TYP L0A*70%	降幅 %	30A TYP △T≤40℃

5. FEATURES

(1)Assemblage design, sturdy structure.

(2)High inductance, high current, low magnetic loss,low ESR, small parasitic capacitance.

(3)Flat wire winding, achieve a low D.C. Resistance.

(4)Temperature rise current and saturation current is less influenced by environment.

Application

1. Digital Products:Digital camera ETC
2.Household Appliance:washing machine,air condition,coffee makerETC
3. Security products:Camera,Voice recording equipment,infrared devicesETC
4.Power:Switching power supply, UPS ETC
5.Lighting industrial: LED drivers
6.Auto electronics: Navigator,Data recorder, Car charger ETC
7.Toys:electric toys, remote controller ETC
8.Motors
